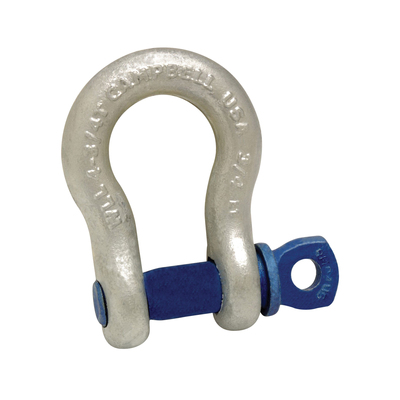

Campbell® 5410435 Anchor Shackle, 1/2 ton Load, 1/4 in, 5/16 in Screw Pin, 15/32 in Opening, Galvanized
Item #BC066734

Campbell® Anchor Shackle, Series: 419, 1/2 ton, 1/4 in, 5/16 in Pin Dia, Screw Pin, 1-1/8 in Inner Length, 25/32 in Inner Width, 15/32 in Opening, 11/16 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized
  • Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
  • 6:1 design factor
  • working load limit permanently shown on every shackle
  • pins and bolts are heat treated and made of alloy steel
  • 1/16 in L x 1/8 in W tolerance (+/-)
Size1/4 in
Series419
FinishGalvanized
WarrantyLimited Lifetime
Load Capacity1/2 ton
Body MaterialDrop Forged Carbon Steel
Pin TypeScrew
Inner Length1-1/8 in
Opening Size15/32 in
Pin Diameter5/16 in
Eye Outer Size11/16 in
Pin MaterialAlloy Steel
Inner Width25/32 in
