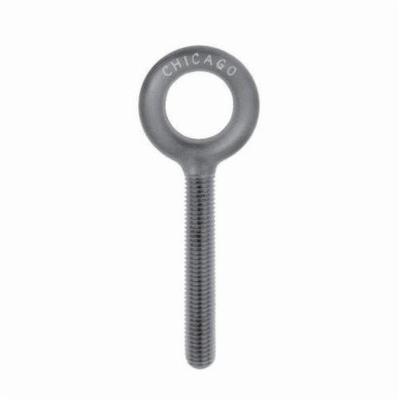

Chicago Hardware 11665 7 Plain Pattern Threaded Machinery Eye Bolt, Imperial, 7/16-14, 1-3/8 in Shank, Self-Colored
Item #BC108170

Chicago Hardware Machinery Eye Bolt, Plain Pattern Threaded, Measurement System Imperial, 7/16-14, 1-3/8 in Shank Length, Heat Treated Drop Forged Steel, Self-Colored, 1-3/32 in Inside Eye Dia, 1-27/32 in Outside Eye Dia, UNC, 3-7/32 in Overall Length, 2000 lb Working, Standard Shank
  • NO 4 plain pattern
  • 500 lb working load limit for 45 deg angular pull
Diameter - Thread Size7/16-14
FinishSelf-Colored
Inside Eye Diameter1-3/32 in
MaterialHeat Treated Drop Forged Steel
Measurement SystemImperial
Outside Eye Diameter1-27/32 in
Overall Length3-7/32 in
Shank Length1-3/8 in
Shank TypeStandard
Thread TypeUNC
TypePlain Pattern Threaded
Working Load Limit2000 lb
