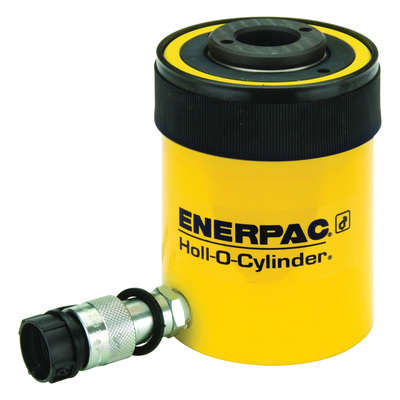

ENERPAC® RCH Single-Acting Hydraulic Cylinder, 3-1/2 in Bore, 2-1/2 in Storke, 7.03 in, 2-1/2 in Dia, 700 bar
Item #BC137166
ENERPAC® Hydraulic Cylinder, Single-Acting, Series: RCH, 3-1/2 in Bore, 2-1/2 in Stroke, 7.03 in Retract, Hollow Plunger, Base Mount, 2-1/2 in Rod Dia, 700 bar, Steel Body, Baked Enamel, 4-1/2 in OD
- Enerpac hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications
- The hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Cylinders are nickel-plated, floating center tube on models over 20 ton increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- 30 ton capacity
- 9.53 in extended height
- 18.05 cu-in oil capacity
- 7.22 sq-in cylinder effective area
