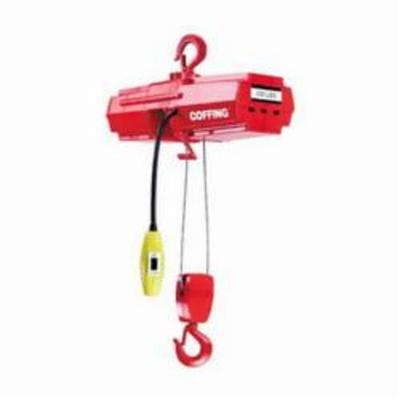

Coffing® Hoists 07612W Double Reeved Electric Wire Rope Hoist, 500 lb Load, 1/8 in Chain/Rope, 10 ft Lifting Height
Coffing® Hoists Electric Wire Rope Hoist, Double Reeved, Series: EMW, 500 lb, 1/8 in, 10 ft Lifting Height, 10 fpm Lift Speed, 13-3/4 in Minimum Between Hooks, NEMA 1, 4 Control Station, 1-Speed Control, AC Disc Type, Electromagnetic Brake, 1/6 hp, 115 V, 1 Phase, 60 Hz, 3 A, 4-3/8 in H x 6-3/8 in W
- Rated loads 300 and 500 lb 10-ft lift with 6-ft push button cord standard
- Swivel top and bottom hooks with safety latches standard suspensions
- Provided with grounded 3-prong plug for easy installation in any standard 115V outlet
- Aluminum housing provides lightweight and compact strength and portability. weighs less than 25 lb
- Upper and lower limit switches on chain models and upper paddle limit switch on wire rope model regulates load travel
- Electromagnetic brake is quick acting for positive load control
- Thermal motor protection standard to prevent overheating
- Rated for intermittent duty applications (10-minute run time per hour maximum)
- LCC-05 chain container (shown) available for EMC models
