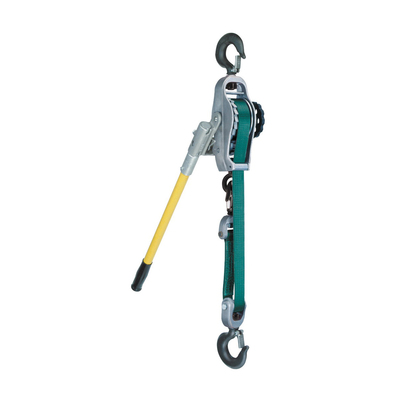

Little Mule® 04142W Light Weight Lineman's Strap Hoist, 1500 lb Single Line and 3000 lb Double Line Load, 1-1/2 in
Item #BC247242

Little Mule® Lineman's Strap Hoist, Light Weight, Series: 300DA, 1500 lb Single Line and 3000 lb Double Line, 9 ft Single Line and 4-1/4 ft Double Line Lifting Height, 18 in Minimum Between Hooks, 31/32 in Hook Opening, 89 - 165 lb Pull to Lift, Dual Pawl Interlocking Ratchet, 20 in Lever Length, 1, 2 Reeving, Cast Aluminum Body, Polyester Strap, 1-1/2 in Strap Width
  • Overload protection handle bends to warn of hazardous condition and prevents dangerous overload
  • 360 deg swiveling hooks equipped with latches for positive load engagement
  • Positive load holding in all environments
  • Double, interlocking pawl mechanism assures one pawl is engaged at all times
  • Light weight and rugged cast-aluminum and zinc alloy housings
  • Corrosion resistant stainless steel springs and shafts
  • Reduced wear through rotating shafts are mounted on bronze bushing
TypeLight Weight
Series300DA
IncludesHot Stick Ring Hooks with Safety Latches
WarrantyLifetime Limited
Strap MaterialPolyester
Load Capacity1500 lb Single Line and 3000 lb Double Line
Body MaterialCast Aluminum
Ratchet TypeDual Pawl Interlocking
Pull to Lift Rated Load89 - 165 lb
Hook Opening31/32 in
Strap Width1-1/2 in
Reeving1, 2
Lifting Height9 ft Single Line and 4-1/4 ft Double Line
Minimum Between Hooks18 in
Lever Length20 in
