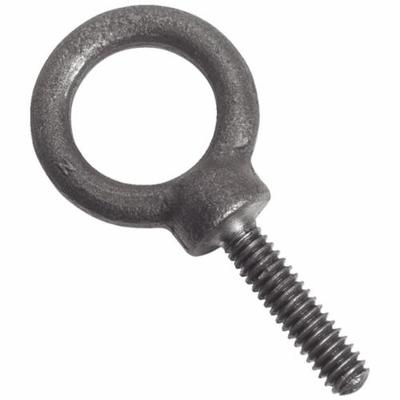

Proto® J94028 Shoulder Pattern Eye Bolt, Imperial, 7/8-9, 2-1/4 in Shank, Forged Steel, Plain
Proto® Eye Bolt, Shoulder Pattern, Measurement System Imperial, 7/8-9, 2-1/4 in Shank Length, Forged Steel, Plain, 1.56 to 1.69 in Inside Eye Dia, 3.19 in Outside Eye Dia, UNC-2A, 6.19 in Overall Length, 7000 lb Working, 2-1/4 in Thread Length
- Maximum load ratings for eye bolts are drastically reduced when loading at an angle
- Angular loads should be avoided whenever possible
- For angular loads of 15 deg or more
