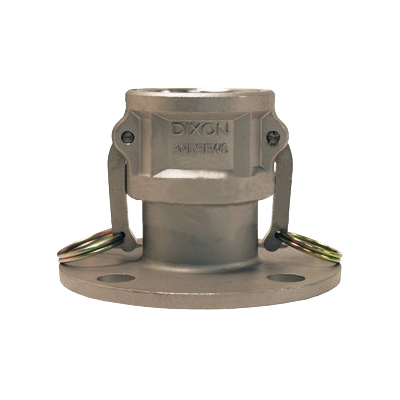

Dixon® 200-DL-SS Type DL Cam & Groove Coupler With Buna-N Seal, 2 in, Female Coupler x 150 lb ASA Flange
Dixon® Cam & Groove Coupler, Type DL, 2 in Nominal Size, Female Coupler x 150 lb ASA Flange, 7/16 in Thickness, 250 psi Working, 316 Stainless Steel, Industry Standards: A-A-59326D, 70 deg F, 4-3/64 in L
- On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
- Flanges have a raised face
- Straight body with two openings for connecting two hoses or pipes with cam and groove fittings
- For higher strength and greater corrosion resistance than 304 stainless steel
- 6 in OD x 7/16 in L flange
- 7-7/8 in distance across open cam arms
- 3-1/8 in OD x 2-7/32 in L coupler
