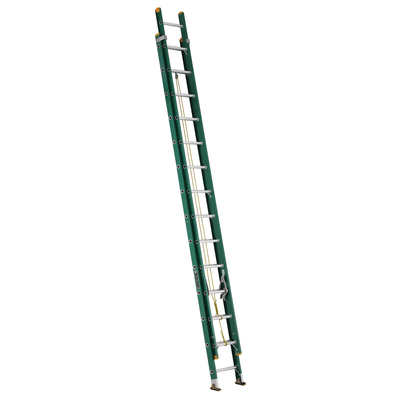

Louisville® FE0628 Commercial Extension Ladder, 16 ft OAL, 225 lb Load, 12 in Adjustable Increments, Fiberglass, Type II
Item #BC854313

Louisville® Extension Ladder, Commercial, Medium Duty, Multi-Section, Series: FE0600, 16 ft Overall Length, Type II, 225 lb, Fiberglass, 27 ft 5 in Maximum Working Length, 14 ft Section Length, 12 in Adjustable Increments, 17 in Outside Shoe Base Width, Non-Conductive Rail, Steel Swivel Safety Shoe
  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Steel swivel safety shoes with metal shield to be used as tread down or in spike position
  • Direct rung rail connection
  • 3-1/4 in rail depth
  • 14-11/16 in base, 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 1-1/2 in step depth
  • 6-1/4 in stack height
  • 20 ft 10 in maximum standing height
Shoe TypeSteel Swivel Safety
SeriesFE0600
TypeCommercial, Medium Duty, Multi-Section
Overall Length16 ft
Rail TypeNon-Conductive
Load Capacity225 lb
Section Length14 ft
Adjustable Increments12 in
Outside Shoe Base Width17 in
ANSI CodeType II
MaterialFiberglass
Maximum Working Length27 ft 5 in
WarrantyLimited
IncludesRope and Pulley
