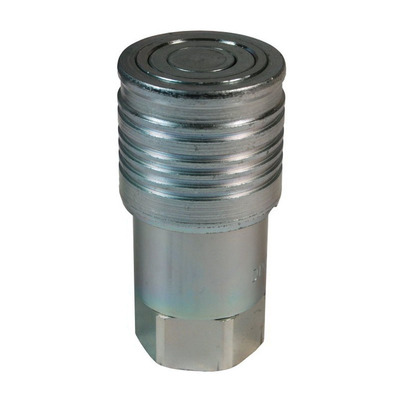

Dixon® 3HTF4 Flush Face Hydraulic Coupler, 3/8 in x 1/2 - 14, Quick Connect x FNPTF, 5000 psi Working, Steel Body
Item #BC880808

Dixon® Hydraulic Coupler, Flush Face, Series: HT, 3/8 in x 1/2 - 14 Nominal Size, Quick Connect x FNPTF, 5000 psi Working, Steel Body, 70 deg F, 2.72 in L
  • High flow performance, compact profile
  • Easily rebuildable
  • Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
  • DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
  • Design minimizes fluid loss resulting in a cleaner, safer work environment
  • Automatic, push-to-connect couplings provide high flow with low pressure drop assuring maximum hydraulic tool performance
  • 1.24 in OD max
  • 1-1/8 in hex
TypeFlush Face
SeriesHT
Dimensions2.72 in L
End StyleQuick Connect x FNPTF
Body MaterialSteel
Temperature Rating70 deg F
Working Pressure5000 psi
Nominal Size3/8 in x 1/2 - 14
